CoCo bouncing BASIC ball, part 4

See also: part 1, part 2, part 3, part 4 and part 5.

Since I like to jump around, let’s do just that.

CoCo cross development revisited

Awhile ago, I posted about Microsoft Visual Studio Code and CoCo cross development. I just remembered this was a thing, so I have been doing some experiments tonight using the Xroar emulator and Visual Studio Code to quickly type up BASIC code and then load it into the emulator via an ASCII file (simulating a cassette tape).

My process is this:

  1. With the Color BASIC extension for Visual Studio Code installed, I type up my BASIC program and save it out to a file called “ASCII.BAS”. (The filename doesn’t matter.)
  2. In Xroar, I select Load (from the cassette menu, or Apple-L on my Mac) and browse to this ascii.bas file I just saved.
  3. In Xroar, I type CLOAD and watch it quickly load in my text file as if it was loaded as an ASCII basic program from tape.
  4. I type RUN and see if it worked…

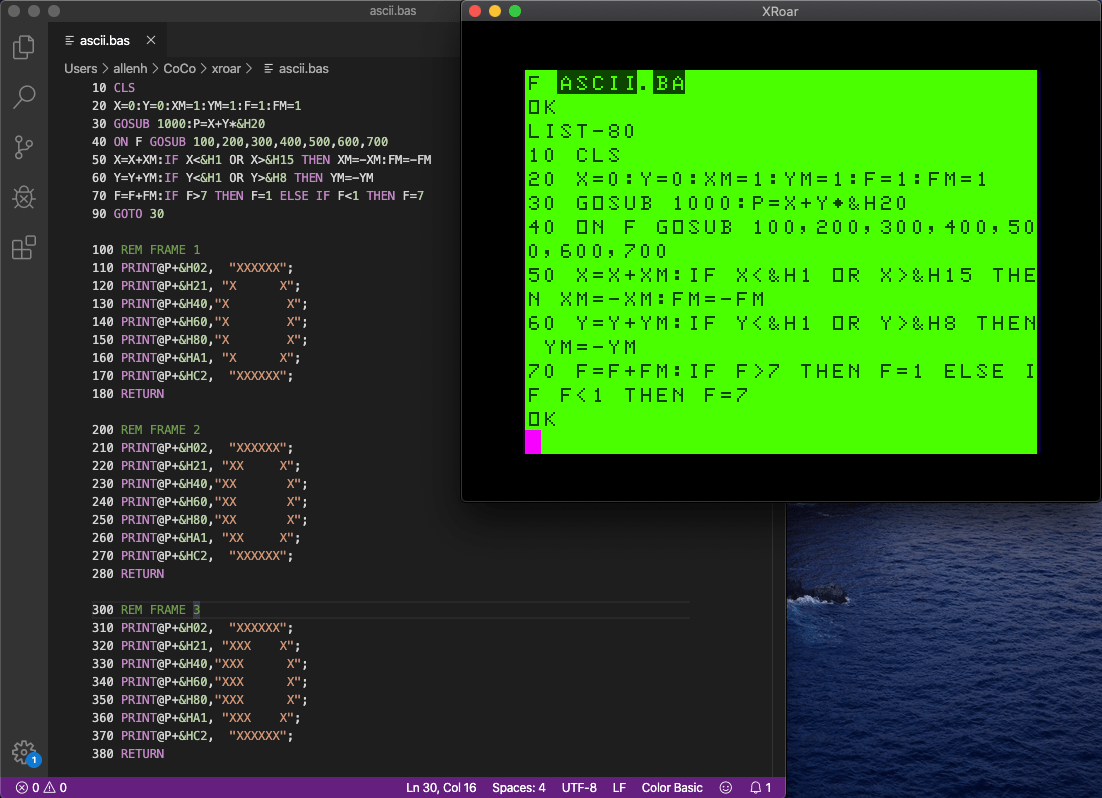

Visual Studio Code with the COLOR BASIC extension, loading in BASIC into the Xroar emulator.

This let’s me write code quickly on my Mac, and then test it out on the emulated CoCo without too much effort.

With that out of the way, let’s return to discussing this bouncing ball project…

Discussing the ball project

My earlier experiments show that the fastest way to print a block of characters on the screen is to calculate the position and then use PRINT@. For example, here is a 10 x 7 block of text that sorta looks like a ball. With variable P being the top left corner to PRINT@ to, I just add offset values to get to each line. I use hex values because that’s faster than using decimal:

100 REM BALL
110 PRINT@P+&H00,"  XXXXXX  ";
120 PRINT@P+&H20," X      X ";
130 PRINT@P+&H40,"X        X";
140 PRINT@P+&H60,"X        X";
150 PRINT@P+&H80,"X        X";
160 PRINT@P+&HA0," X      X ";
170 PRINT@P+&HC0,"  XXXXXX  ";

I can adjust the location of P and have this print the ball anywhere I want on the screen. But, since it’s a ball, it doesn’t really make sense for me to print those empty corners, so I removed them and adjusted the offsets:

100 REM BALL
110 PRINT@P+&H02,  "XXXXXX";
120 PRINT@P+&H21, "X       X";
130 PRINT@P+&H40,"X         X";
140 PRINT@P+&H60,"X         X";
150 PRINT@P+&H80,"X         X";
160 PRINT@P+&HA1, "X      X";
170 PRINT@P+&HC2,  "XXXXXX";

Just so I could see the ball better, I added spaces before the string quotes in lines 110, 120, 160 and 170. To make it faster, I’d remove those, and put all these PRINTs on one line (if it fits). Every little bit helps, but we’ll optimize for speed later.

Now, Jim Gerrie’s demo had different frames of animation which he did using an array of strings. But, printing arrays is slower (since it has to look up the values each time). I decided I’d try raw PRINTs and make each “frame” of the ball be a subroutine. It takes time to GOSUB to that routine, but it will RETURN quickly.

I could then use a variable to represent which frame to print, and use ON/GOSUB to get to it (at the overhead of teaching forward in the program to find that line number).

40 ON F GOSUB 100,200,300,400,500,600,700

We’d need to benchmark to see if searching the array is faster than searching line numbers. (Since each array string would have to be looked up, versus one search for a line number, I expect the GOSUB approach will be faster unless the program is huge and it has to search through tons of lines.)

Now I can do my X and Y movement calculating, conversion that to a PRINT@ location, and then GOSUB to the appropriate frame routine to display it.

To erase the ball, I could just clear the entire screen (CLS), or I could make a subroutine that just PRINTs over the old ball:

1000 REM ERASE
1100 PRINT@P+&H02,  "      ";
1200 PRINT@P+&H21, "        ";
1300 PRINT@P+&H40,"          ";
1400 PRINT@P+&H60,"          ";
1500 PRINT@P+&H80,"          ";
1600 PRINT@P+&HA1, "        ";
1700 PRINT@P+&HC2,  "      ";
1800 RETURN

This should greatly reduce the amount of flicker.

Let’s see what the program looks like now:

10 CLS
20 X=0:Y=0:XM=1:YM=1:F=1:FM=1
30 GOSUB 1000:P=X+Y*&H20
40 ON F GOSUB 100,200,300,400,500,600,700
50 X=X+XM:IF X<&H1 OR X>&H15 THEN XM=-XM:FM=-FM
60 Y=Y+YM:IF Y<&H1 OR Y>&H8 THEN YM=-YM
70 F=F+FM:IF F>7 THEN F=1 ELSE IF F<1 THEN F=7
80 GOTO 30

In line 10, I clear the screen. Right now, I’m just using text on the green screen, but ultimately I’ll want to clear the screen to some background color, and “erase” by printing that color over the old ball.

Line 20 initializes the variables I will be using:

  • X – X position of the top left corner of the ball.
  • Y – Y position of the top left corner of the ball.
  • XM – value to add to X for the next X movement (1 to move to the right, -1 to move to the left).
  • YM – value to add to Y for the next Y movement (1 to move down, -1 to move up).
  • F – frame of the ball to display. Since ON GOTO/GOSUB uses base-1 values, frames will be 1-x.
  • FM – value to add to F to get to the next frame. When moving left to right, I’ll add 1 and increment the frame. When the ball bounces off the right side of the screen, I’ll start adding -1 and reverse the animation.

Line 30 erases the ball at the current position. This doesn’t make sense the first time we RUN, but it will have something to erase every time after that. We also calculate the PRINT@ P position from the X and Y values.

Line 40 does the ON GOSUB to the routine to print whatever frame we are supposed to display. If F is 1, it GOSUBs to 100. If F is 4, it GOSUBs to 400.

Line 50 adds the XM value to X, giving us our next X position. It then checks to see if X has gone too far left, or too far right, and reverses the XM value if so.

Line 60 is the same as above, but for the Y value.

Line 70 is similar, but either increments or decrements the frame, then checks to see if it needs to wrap around to the frame at the other side.

After this, we just need the routines that print the ball frames and erase the ball frame:

100 REM FRAME 1
110 PRINT@P+&H02,  "XXXXXX";
120 PRINT@P+&H21, "X      X";
130 PRINT@P+&H40,"X        X";
140 PRINT@P+&H60,"X        X";
150 PRINT@P+&H80,"X        X";
160 PRINT@P+&HA1, "X      X";
170 PRINT@P+&HC2,  "XXXXXX";
180 RETURN

200 REM FRAME 2
210 PRINT@P+&H02,  "XXXXXX";
220 PRINT@P+&H21, "XX     X";
230 PRINT@P+&H40,"XX       X";
240 PRINT@P+&H60,"XX       X";
250 PRINT@P+&H80,"XX       X";
260 PRINT@P+&HA1, "XX     X";
270 PRINT@P+&HC2,  "XXXXXX";
280 RETURN

300 REM FRAME 3
310 PRINT@P+&H02,  "XXXXXX";
320 PRINT@P+&H21, "XXX    X";
330 PRINT@P+&H40,"XXX      X";
340 PRINT@P+&H60,"XXX      X";
350 PRINT@P+&H80,"XXX      X";
360 PRINT@P+&HA1, "XXX    X";
370 PRINT@P+&HC2,  "XXXXXX";
380 RETURN

400 REM FRAME 4
410 PRINT@P+&H02,  "XXXXXX";
420 PRINT@P+&H21, "X XX   X";
430 PRINT@P+&H40,"X XXX    X";
440 PRINT@P+&H60,"X XXX    X";
450 PRINT@P+&H80,"X XXX    X";
460 PRINT@P+&HA1, "X XX   X";
470 PRINT@P+&HC2,  "XXXXXX";
480 RETURN

500 REM FRAME 5
510 PRINT@P+&H02,  "XXXXXX";
520 PRINT@P+&H21, "X  XX  X";
530 PRINT@P+&H40,"X  XXXX  X";
540 PRINT@P+&H60,"X  XXXX  X";
550 PRINT@P+&H80,"X  XXXX  X";
560 PRINT@P+&HA1, "X  XX  X";
570 PRINT@P+&HC2,  "XXXXXX";
580 RETURN

600 REM FRAME 6
610 PRINT@P+&H02,  "XXXXXX";
620 PRINT@P+&H21, "X   XX X";
630 PRINT@P+&H40,"X    XXX X";
640 PRINT@P+&H60,"X    XXX X";
650 PRINT@P+&H80,"X    XXX X";
660 PRINT@P+&HA1, "X   XX X";
670 PRINT@P+&HC2,  "XXXXXX";
680 RETURN

700 REM FRAME 7
710 PRINT@P+&H02,  "XXXXXX";
720 PRINT@P+&H21, "X    XXX";
730 PRINT@P+&H40,"X      XXX";
740 PRINT@P+&H60,"X      XXX";
750 PRINT@P+&H80,"X      XXX";
760 PRINT@P+&HA1, "X    XXX";
770 PRINT@P+&HC2,  "XXXXXX";
780 RETURN

1000 REM ERASE
1100 PRINT@P+&H02,  "      ";
1200 PRINT@P+&H21, "        ";
1300 PRINT@P+&H40,"          ";
1400 PRINT@P+&H60,"          ";
1500 PRINT@P+&H80,"          ";
1600 PRINT@P+&HA1, "        ";
1700 PRINT@P+&HC2,  "      ";
1800 RETURN

(After I typed this, I realize I need a FRAME 8, but I’ll fix that later.)

You can see my simple attempt at making the ball “spin” in action here:

With this proof-of-concept done, I can now get back to trying to make it get done faster by optimizing the BASIC code for speed.

To be continued…

2 thoughts on “CoCo bouncing BASIC ball, part 4

  1. MiaM

    With 8 frames, you can skip all the frame counter logic and just use X AND 7 to get the frame number. That would requrie an add by one in the ON F GOSUB statement, but that would probably still be faster. This assumes that the movement will always be one x position per step, so won’t work with faster/slower movement or pure vertical movement.
