It seems any time I touch BASIC these days, it turns into a benchmarking session to see if I can do something faster.My Jim Gerrie-inspired bouncing ball program has taken quite a tangent, and today it not going to change that.

MC-10 has its advantages

As previously discussed, PRINT@ seems to be the fastest way to put characters on the screen. But what if you want something that’s not just text? In Jim’s MC-10 demo, he uses the semi graphics characters in his ball. The MC-10’s BASIC allowed you to type those characters similarly to how Commodore computers let you type in their PETASCII characters. The excellent MC-10 Javascript Emulator has this image showing the keyboard layout:

If you look at the keys, you will see some contain graphics blocks next to the letter (Q and a solid block, F and checkerboard, etc.). You can generate them with SHIFT-Letter. You also see some keywords above the keys which you could generate by doing CONTROL-Letter. This let them type in graphics characters in a PRINT statement:

Advantage MC-10. We have no way to do that on the CoCo.

PRINT CHR$()

So how do we print the graphics characters? We use CHR$() which will print whatever character we tell it to. For example, letter “A” is ASCII 65. We could type:

PRINT CHR$(65)

…and it would print the letter A.

Our graphics characters start at 128 and go to 255, looping the same basic shapes through the 8 available colors (color + black). We can see them all by typing:

FOR A=128 TO 255:PRINT CHR$(A);:NEXT A

If I knew which characters to use to draw a ball, I could print them using CHR$(). Unfortunately, I don’t. I have no idea where my old CoCo “quick guide” is from the 1980s that listed them all. Fortunately, Simon Jonassen has a website that lets us design semi graphics:

http://cocobotomy.roust-it.dk/sgedit/

Using my previous text ball for reference, I want to make a semi graphics ball that is 10×7 characters (so it appears round on the 32×16 4:3 aspect ratio display…). Using Simon’s tool, I came up with this:

It’s not a great ball, but it gives me something to start with.

On the bottom right of this web page are buttons to spit out the assembly, BASIC or CSV “code” to display this. But, it’s the whole screen, and looks like this:

10 CLEAR2000:DIMT,A:CLS
20 FORT=1024TO1535:READA:POKET,A:NEXT
100 A$=INKEY$:IFA$="" THEN100
1000 DATA 128,161,166,172,172,172,172,169,162,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1010 DATA 161,168,128,128,128,128,128,128,164,162,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1020 DATA 170,128,128,128,128,128,128,128,128,165,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1030 DATA 170,128,128,128,128,128,128,128,128,165,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1040 DATA 170,128,128,128,128,128,128,128,128,165,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1050 DATA 164,162,128,128,128,128,128,128,161,168,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1060 DATA 128,164,169,163,163,163,163,166,168,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1070 DATA 128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1080 DATA 128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1090 DATA 128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1100 DATA 128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1110 DATA 128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1120 DATA 128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1130 DATA 128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1140 DATA 128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128
1150 DATA 128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128,128

That program, when ran, would draw the VDG semi graphics screen. But I only want the ball at the top left, so I should be able to find the values for that.

Side Note: Hey, Simon! I don’t think the CLEAR 2000 is necessary. That’s only used for strings. And since you aren’t using A$ for anything (you don’t DIM it either, I notice), you could do 100 IF INKEY$=”” THEN 100 instead and eliminate that variable. Also, generating the values as HEX would make it draw the screen faster. (Heh, force-of-habit when I write these articles. Simon is one of the most amazing CoCo programmers out there, and in one of my earlier articles, he contributed enhancements to my attempts at assembly code. This is about as “helpful” as I could ever be for someone as talented as Simon.)

There seems to be 16 DATA statements, each containing 32 values. Thus, the first seven DATAs look to be the first seven lines of the screen, and the first 10 values of each of those should be the 10 values for my ball. This gives me the following values:

1000 DATA 128,161,166,172,172,172,172,169,162,128
1010 DATA 161,168,128,128,128,128,128,128,164,162
1020 DATA 170,128,128,128,128,128,128,128,128,165
1030 DATA 170,128,128,128,128,128,128,128,128,165
1040 DATA 170,128,128,128,128,128,128,128,128,165
1050 DATA 164,162,128,128,128,128,128,128,161,168
1060 DATA 128,164,169,163,163,163,163,166,168,128

Those are the numbers I’d use to PRINT CHR$() that ball. I’ll first try it like this:

30 PRINT@P+0,CHR$(128);CHR$(161);CHR$(166);CHR$(172);CHR$(172);CHR$(172);CHR$(172);CHR$(169);CHR$(162);CHR$(128);
31 PRINT@P+32,CHR$(161);CHR$(168);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(164);CHR$(162);
32 PRINT@P+64,CHR$(170);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(165);
33 PRINT@P+96,CHR$(170);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(165);
34 PRINT@P+128,CHR$(170);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(165);
35 PRINT@P+160,CHR$(164);CHR$(162);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(161);CHR$(168);
36 PRINT@P+192,CHR$(128);CHR$(164);CHR$(169);CHR$(163);CHR$(163);CHR$(163);CHR$(163);CHR$(166);CHR$(168);CHR$(128);

Using P as the starting PRINT@ (0 for the top left of the screen), each line will print the ten CHR$() values of the ball, then the next line will print at “P+32”, making it the next line down, and so on.

0 REM BALLVDG.BAS
5 DIM TE,TM,B,A,TT
10 FORA=0TO3:TIMER=0:TM=TIMER
20 FORB=0TO1000
30 PRINT@P+0,CHR$(128);CHR$(161);CHR$(166);CHR$(172);CHR$(172);CHR$(172);CHR$(172);CHR$(169);CHR$(162);CHR$(128);
31 PRINT@P+32,CHR$(161);CHR$(168);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(164);CHR$(162);
32 PRINT@P+64,CHR$(170);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(165);
33 PRINT@P+96,CHR$(170);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(165);
34 PRINT@P+128,CHR$(170);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(165);
35 PRINT@P+160,CHR$(164);CHR$(162);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(128);CHR$(161);CHR$(168);
36 PRINT@P+192,CHR$(128);CHR$(164);CHR$(169);CHR$(163);CHR$(163);CHR$(163);CHR$(163);CHR$(166);CHR$(168);CHR$(128);
70 NEXT
80 TE=TIMER-TM:PRINTA,TE
90 TT=TT+TE:NEXT:PRINTTT/A:END

When this runs, you can SEE it PRINT the ball character-by-character! This is very slow. My benchmark took “forever” to run, reporting 26133 (at 60 ticks per second, that’s over 7 minutes to draw that 1001 times). If you take 26133 / 1001 (I really need to change that loop to be 0 to 999) you get 26.10 “ticks” per time. Divide that by 60 (per tick) you get .43. So it’s taking almost half a second to draw seven lines of ten characters each using CHR$() for each character. (Plus overhead of PRINT@ and such).

We need our ball to bounce faster than that.

We have discussed how switching from decimal to hex will speed things up, so let’s try that:

30 PRINT@P+&H0,CHR$(&H80);CHR$(&HA1);CHR$(&HA6);CHR$(&HAC);CHR$(&HAC);CHR$(&HAC);CHR$(&HAC);CHR$(&HA9);CHR$(&HA2);CHR$(&H80);
31 PRINT@P+&H20,CHR$(&HA1);CHR$(&HA8);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&HA4);CHR$(&HA2);
32 PRINT@P+&H40,CHR$(&HAA);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&HA5);
33 PRINT@P+&H60,CHR$(&HAA);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&HA5);
34 PRINT@P+&H80,CHR$(&HAA);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&HA5);
35 PRINT@P+&HA0,CHR$(&HA4);CHR$(&HA2);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&H80);CHR$(&HA1);CHR$(&HA8);
36 PRINT@P+&HC0,CHR$(&H80);CHR$(&HA4);CHR$(&HA9);CHR$(&HA3);CHR$(&HA3);CHR$(&HA3);CHR$(&HA3);CHR$(&HA6);CHR$(&HA8);CHR$(&H80);

This looks a tiny bit faster. The benchmark reports 14790 (which breaks down to .24 seconds each time). That’s almost twice as fast (well, .24 to .44) but still not fast enough.

The only other thing we could do would be to remove all the in-between semicolons, since they aren’t actually needed to print the characters side-by-side (except for the last one, since we don’t want it to clear the rest of the screen line):

30 PRINT@P+&H0,CHR$(&H80)CHR$(&HA1)CHR$(&HA6)CHR$(&HAC)CHR$(&HAC)CHR$(&HAC)CHR$(&HAC)CHR$(&HA9)CHR$(&HA2)CHR$(&H80);
31 PRINT@P+&H20,CHR$(&HA1)CHR$(&HA8)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&HA4)CHR$(&HA2);
32 PRINT@P+&H40,CHR$(&HAA)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&HA5);
33 PRINT@P+&H60,CHR$(&HAA)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&HA5);
34 PRINT@P+&H80,CHR$(&HAA)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&HA5);
35 PRINT@P+&HA0,CHR$(&HA4)CHR$(&HA2)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&H80)CHR$(&HA1)CHR$(&HA8);
36 PRINT@P+&HC0,CHR$(&H80)CHR$(&HA4)CHR$(&HA9)CHR$(&HA3)CHR$(&HA3)CHR$(&HA3)CHR$(&HA3)CHR$(&HA6)CHR$(&HA8)CHR$(&H80);

This removes the extra time it takes BASIC to parse (and skip) NINE semicolons on each line (times ten lines). That adds up, but removing them only increases the benchmark to 14542 — barely measurable.

I don’t see a faster way to do this using PRINT CHR$() over and over and over and over again.

Definition of insanity…

To avoid all the time it takes for BASIC to parse each CHR$() over and over and over and over, we can do that just once and store the result in a string and print that string instead. I’ll use one-letter string names, unique for each line, for speed. It would be “easier” to use an array (like BL$(7) or something) but I’ve previously explored that and found array access to be slower.

Since this is a demo, we’ll do it the silly way, like this:

A$=CHR$(&H80)+CHR$(&HA1)+CHR$(&HA6)+CHR$(&HAC)+CHR$(&HAC)+CHR$(&HAC)+CHR$(&HAC)+CHR$(&HA9)+CHR$(&HA2)+CHR$(&H80)

B$=CHR$(&HA1)+CHR$(&HA8)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA4)+CHR$(&HA2)

C$=CHR$(&HAA)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA5)

D$=CHR$(&HAA)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA5)

E$=CHR$(&HAA)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA5)

F$=CHR$(&HA4)+CHR$(&HA2)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA1)+CHR$(&HA8)

G$=CHR$(&H80)+CHR$(&HA4)+CHR$(&HA9)+CHR$(&HA3)+CHR$(&HA3)+CHR$(&HA3)+CHR$(&HA3)+CHR$(&HA6)+CHR$(&HA8)+CHR$(&H80)

Now we can just print those strings and, instead of BASIC having to parse and generate seventy CHR$()s each time, it will just have to look up and print seven strings. This should be much faster!

I made some room in my BENCH.BAS program to fit this strings in at the top, and it now looks like this:

0 REM BALLVDG3.BAS
1 DIM TE,TM,B,A,TT
2 A$=CHR$(&H80)+CHR$(&HA1)+CHR$(&HA6)+CHR$(&HAC)+CHR$(&HAC)+CHR$(&HAC)+CHR$(&HAC)+CHR$(&HA9)+CHR$(&HA2)+CHR$(&H80)
3 B$=CHR$(&HA1)+CHR$(&HA8)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA4)+CHR$(&HA2)
4 C$=CHR$(&HAA)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA5)
5 D$=CHR$(&HAA)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA5)
6 E$=CHR$(&HAA)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA5)
7 F$=CHR$(&HA4)+CHR$(&HA2)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&H80)+CHR$(&HA1)+CHR$(&HA8)
8 G$=CHR$(&H80)+CHR$(&HA4)+CHR$(&HA9)+CHR$(&HA3)+CHR$(&HA3)+CHR$(&HA3)+CHR$(&HA3)+CHR$(&HA6)+CHR$(&HA8)+CHR$(&H80)

10 FORA=0TO3:TIMER=0:TM=TIMER
20 FORB=0TO1000

30 PRINT@P+&H0,A$;
31 PRINT@P+&H20,B$;
32 PRINT@P+&H40,C$;
33 PRINT@P+&H60,D$;
34 PRINT@P+&H80,E$;
35 PRINT@P+&HA0,F$;
36 PRINT@P+&HC0,G$;

70 NEXT
80 TE=TIMER-TM:PRINTA,TE
90 TT=TT+TE:NEXT:PRINTTT/A:END

The benchmark now reports 3200! That’s a huge improvement from the original 26133. I think this is about as fast as we can get… at least using strings.

But, for this demo, I wanted to have several frames of animation. If I make a bunch of strings, that’s going to slow things down since there will be more strings to search through. Also, I’ll run out of single-character variables names and might have to do things like A1$, A2$, A3$, etc. for the first frame, and B1$, B2$, B3$, etc. for the second frame, and so on. While this would STILL be faster than doing a bunch of PRINT CHR$(), and I expect still faster than using arrays like F$(0) through F$(6).

If I was less impatient, I’d test that, and even try a double dimension array like F$(frame, line) which would be really easy and look really nice … but would probably be be slower than anything but PRINT CHR$()s…

Note to Self: Write an article about using multi-dimensioned arrays to do simple animation in BASIC.

But I’m impatient, so now let’s circle back to the start of this post where I mentioned the MC-10 being able to embed characters in its PRINT statements directly without needing variables.

We can’t type those graphics characters on the CoCo, but if we don’t mind cheating a bit, we can modify the contents of a program so that the quoted string contains special graphic characters. It makes lines that do that impossible to edit, and print (on most printers), but if it’s just a demo (or some program you write for people to JUST run and not mess with), it works.

Self-modifying BASIC code

Suppose we had a print statement like this:

10 PRINT "**********";

…and we wanted to change those ten asterisks to be a graphics character. If we knew where they were located in BASIC memory, we could POKE the values and change them from a 42 (ASCII for ‘*’) to something else, like a 128 for the solid black block graphics character.

As a kid, I did this in a pretty brute-force way, blindly PEEKing through program memory and changing values to what I wanted them to be. This sometimes had dangerous side effects if the value I was PEEKing for (like 42) appeared as part of a BASIC keyword token or something not inside the quoted string.

So, let’s try to be a bit smarter and scan through the program memory but only look for values between quotes.

If I recall, memory locations 25 and 26 contain the start of the BASIC program. You can get that address like this:

PRINT PEEK(25)*256+PEEK(26)

The end of the program is at 27 and 28:

PRINT PEEK(27)*256+PEEK(28)

It should be super easy (barely an inconvenience) to make a program that PEEKs memory between that range and looks for a 34 (the quote character) and then will start substituting our source character (42, the asterisk) for our target character (128, a black block).

10 PRINT "**********"
20 END
100 ST=PEEK(25)*256+PEEK(26)
110 EN=PEEK(27)*256+PEEK(28)
120 QF=0 'QOUTE FOUND FLAG
130 FOR A=ST TO EN
140 IF PEEK(A)=32 THEN IF QF=1 THEN QF=0 ELSE QF=1
150 IF QF=1 THEN IF PEEK(A)=42 THEN POKE A,128
160 NEXT

If you load this program and RUN it, it will print a line of ten asterisks.

Then if you RUN 100, it will do the search/replace looking for asterisks between quotes and changing them to 128s (black block).

One that is done, RUN again and you see it now prints a row of ten black blocks!

From this point on, that line 10 has been forever changed. If you LIST it, you will see weirdness. In this case, line 10 says:

10 PRINT "FORFORFORFORFORFORFORFORFORFOR"

…because apparently that byte of 128 is the token for the keyword FOR.

If you try to EDIT LINE 10, BASIC turns the tokens back into ASCII text for you to edit. Thus, as soon as you edit, you are changing that line to say “FORFORFORFOR…” instead of the graphics characters.

Thus, don’t edit a line after you do this trick!

I think this is a good stopping point for today. My goal here is to switch from my ball print ASCII “X” characters to graphics blocks, and retain the speed of raw PRINTs rather than using a ton of variables that have to be looked up each time — and the more variables, the slower that lookup gets.

But there’s more ASCII fun to be had before I start doing this.

To be continued…

See also: part 1, part 2, part 3, part 4 and part 5.

Since I like to jump around, let’s do just that.

CoCo cross development revisited

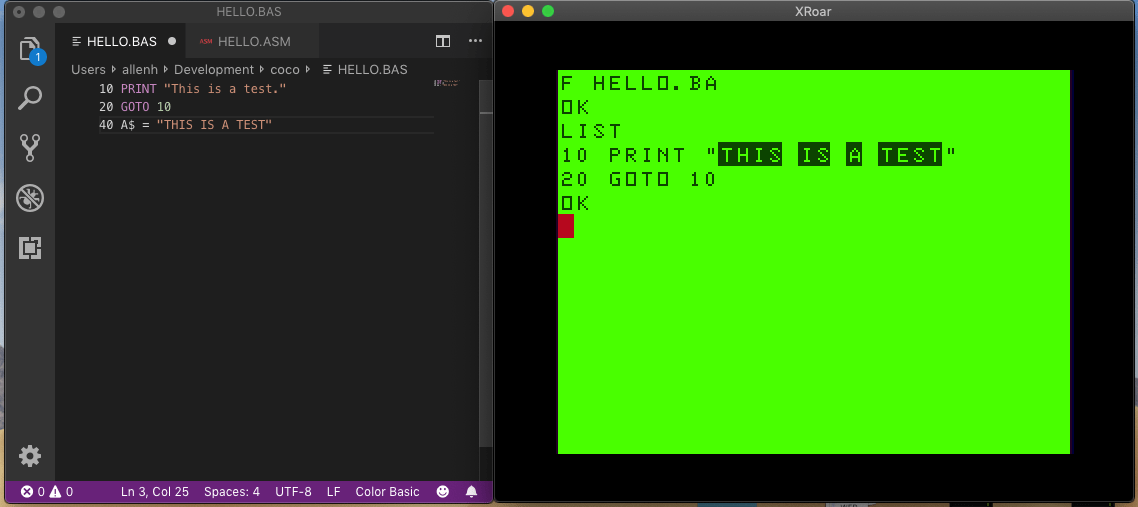

Awhile ago, I posted about Microsoft Visual Studio Code and CoCo cross development. I just remembered this was a thing, so I have been doing some experiments tonight using the Xroar emulator and Visual Studio Code to quickly type up BASIC code and then load it into the emulator via an ASCII file (simulating a cassette tape).

My process is this:

1. With the Color BASIC extension for Visual Studio Code installed, I type up my BASIC program and save it out to a file called “ASCII.BAS”. (The filename doesn’t matter.)
2. In Xroar, I select Load (from the cassette menu, or Apple-L on my Mac) and browse to this ascii.bas file I just saved.
3. In Xroar, I type CLOAD and watch it quickly load in my text file as if it was loaded as an ASCII basic program from tape.
4. I type RUN and see if it worked…

This let’s me write code quickly on my Mac, and then test it out on the emulated CoCo without too much effort.

With that out of the way, let’s return to discussing this bouncing ball project…

Discussing the ball project

My earlier experiments show that the fastest way to print a block of characters on the screen is to calculate the position and then use PRINT@. For example, here is a 10 x 7 block of text that sorta looks like a ball. With variable P being the top left corner to PRINT@ to, I just add offset values to get to each line. I use hex values because that’s faster than using decimal:

100 REM BALL
110 PRINT@P+&H00,"  XXXXXX  ";
120 PRINT@P+&H20," X      X ";
130 PRINT@P+&H40,"X        X";
140 PRINT@P+&H60,"X        X";
150 PRINT@P+&H80,"X        X";
160 PRINT@P+&HA0," X      X ";
170 PRINT@P+&HC0,"  XXXXXX  ";

I can adjust the location of P and have this print the ball anywhere I want on the screen. But, since it’s a ball, it doesn’t really make sense for me to print those empty corners, so I removed them and adjusted the offsets:

100 REM BALL
110 PRINT@P+&H02,  "XXXXXX";
120 PRINT@P+&H21, "X       X";
130 PRINT@P+&H40,"X         X";
140 PRINT@P+&H60,"X         X";
150 PRINT@P+&H80,"X         X";
160 PRINT@P+&HA1, "X      X";
170 PRINT@P+&HC2,  "XXXXXX";

Just so I could see the ball better, I added spaces before the string quotes in lines 110, 120, 160 and 170. To make it faster, I’d remove those, and put all these PRINTs on one line (if it fits). Every little bit helps, but we’ll optimize for speed later.

Now, Jim Gerrie’s demo had different frames of animation which he did using an array of strings. But, printing arrays is slower (since it has to look up the values each time). I decided I’d try raw PRINTs and make each “frame” of the ball be a subroutine. It takes time to GOSUB to that routine, but it will RETURN quickly.

I could then use a variable to represent which frame to print, and use ON/GOSUB to get to it (at the overhead of teaching forward in the program to find that line number).

40 ON F GOSUB 100,200,300,400,500,600,700

We’d need to benchmark to see if searching the array is faster than searching line numbers. (Since each array string would have to be looked up, versus one search for a line number, I expect the GOSUB approach will be faster unless the program is huge and it has to search through tons of lines.)

Now I can do my X and Y movement calculating, conversion that to a PRINT@ location, and then GOSUB to the appropriate frame routine to display it.

To erase the ball, I could just clear the entire screen (CLS), or I could make a subroutine that just PRINTs over the old ball:

1000 REM ERASE
1100 PRINT@P+&H02,  "      ";
1200 PRINT@P+&H21, "        ";
1300 PRINT@P+&H40,"          ";
1400 PRINT@P+&H60,"          ";
1500 PRINT@P+&H80,"          ";
1600 PRINT@P+&HA1, "        ";
1700 PRINT@P+&HC2,  "      ";
1800 RETURN

This should greatly reduce the amount of flicker.

Let’s see what the program looks like now:

10 CLS
20 X=0:Y=0:XM=1:YM=1:F=1:FM=1
30 GOSUB 1000:P=X+Y*&H20
40 ON F GOSUB 100,200,300,400,500,600,700
50 X=X+XM:IF X<&H1 OR X>&H15 THEN XM=-XM:FM=-FM
60 Y=Y+YM:IF Y<&H1 OR Y>&H8 THEN YM=-YM
70 F=F+FM:IF F>7 THEN F=1 ELSE IF F<1 THEN F=7
80 GOTO 30

In line 10, I clear the screen. Right now, I’m just using text on the green screen, but ultimately I’ll want to clear the screen to some background color, and “erase” by printing that color over the old ball.

Line 20 initializes the variables I will be using:

• X – X position of the top left corner of the ball.
• Y – Y position of the top left corner of the ball.
• XM – value to add to X for the next X movement (1 to move to the right, -1 to move to the left).
• YM – value to add to Y for the next Y movement (1 to move down, -1 to move up).
• F – frame of the ball to display. Since ON GOTO/GOSUB uses base-1 values, frames will be 1-x.
• FM – value to add to F to get to the next frame. When moving left to right, I’ll add 1 and increment the frame. When the ball bounces off the right side of the screen, I’ll start adding -1 and reverse the animation.

Line 30 erases the ball at the current position. This doesn’t make sense the first time we RUN, but it will have something to erase every time after that. We also calculate the PRINT@ P position from the X and Y values.

Line 40 does the ON GOSUB to the routine to print whatever frame we are supposed to display. If F is 1, it GOSUBs to 100. If F is 4, it GOSUBs to 400.

Line 50 adds the XM value to X, giving us our next X position. It then checks to see if X has gone too far left, or too far right, and reverses the XM value if so.

Line 60 is the same as above, but for the Y value.

Line 70 is similar, but either increments or decrements the frame, then checks to see if it needs to wrap around to the frame at the other side.

After this, we just need the routines that print the ball frames and erase the ball frame:

100 REM FRAME 1
110 PRINT@P+&H02,  "XXXXXX";
120 PRINT@P+&H21, "X      X";
130 PRINT@P+&H40,"X        X";
140 PRINT@P+&H60,"X        X";
150 PRINT@P+&H80,"X        X";
160 PRINT@P+&HA1, "X      X";
170 PRINT@P+&HC2,  "XXXXXX";
180 RETURN

200 REM FRAME 2
210 PRINT@P+&H02,  "XXXXXX";
220 PRINT@P+&H21, "XX     X";
230 PRINT@P+&H40,"XX       X";
240 PRINT@P+&H60,"XX       X";
250 PRINT@P+&H80,"XX       X";
260 PRINT@P+&HA1, "XX     X";
270 PRINT@P+&HC2,  "XXXXXX";
280 RETURN

300 REM FRAME 3
310 PRINT@P+&H02,  "XXXXXX";
320 PRINT@P+&H21, "XXX    X";
330 PRINT@P+&H40,"XXX      X";
340 PRINT@P+&H60,"XXX      X";
350 PRINT@P+&H80,"XXX      X";
360 PRINT@P+&HA1, "XXX    X";
370 PRINT@P+&HC2,  "XXXXXX";
380 RETURN

400 REM FRAME 4
410 PRINT@P+&H02,  "XXXXXX";
420 PRINT@P+&H21, "X XX   X";
430 PRINT@P+&H40,"X XXX    X";
440 PRINT@P+&H60,"X XXX    X";
450 PRINT@P+&H80,"X XXX    X";
460 PRINT@P+&HA1, "X XX   X";
470 PRINT@P+&HC2,  "XXXXXX";
480 RETURN

500 REM FRAME 5
510 PRINT@P+&H02,  "XXXXXX";
520 PRINT@P+&H21, "X  XX  X";
530 PRINT@P+&H40,"X  XXXX  X";
540 PRINT@P+&H60,"X  XXXX  X";
550 PRINT@P+&H80,"X  XXXX  X";
560 PRINT@P+&HA1, "X  XX  X";
570 PRINT@P+&HC2,  "XXXXXX";
580 RETURN

600 REM FRAME 6
610 PRINT@P+&H02,  "XXXXXX";
620 PRINT@P+&H21, "X   XX X";
630 PRINT@P+&H40,"X    XXX X";
640 PRINT@P+&H60,"X    XXX X";
650 PRINT@P+&H80,"X    XXX X";
660 PRINT@P+&HA1, "X   XX X";
670 PRINT@P+&HC2,  "XXXXXX";
680 RETURN

700 REM FRAME 7
710 PRINT@P+&H02,  "XXXXXX";
720 PRINT@P+&H21, "X    XXX";
730 PRINT@P+&H40,"X      XXX";
740 PRINT@P+&H60,"X      XXX";
750 PRINT@P+&H80,"X      XXX";
760 PRINT@P+&HA1, "X    XXX";
770 PRINT@P+&HC2,  "XXXXXX";
780 RETURN

1000 REM ERASE
1100 PRINT@P+&H02,  "      ";
1200 PRINT@P+&H21, "        ";
1300 PRINT@P+&H40,"          ";
1400 PRINT@P+&H60,"          ";
1500 PRINT@P+&H80,"          ";
1600 PRINT@P+&HA1, "        ";
1700 PRINT@P+&HC2,  "      ";
1800 RETURN

(After I typed this, I realize I need a FRAME 8, but I’ll fix that later.)

You can see my simple attempt at making the ball “spin” in action here:

With this proof-of-concept done, I can now get back to trying to make it get done faster by optimizing the BASIC code for speed.

To be continued…

See also: part 1, part 2, part 3, part 4 and part 5.

The prolific Jim Gerrie recently posted a video of an MC-10 bouncing ball demo he wrote in BASIC:

Thanks to Jim, the MC-10 joins a long list of 80’s home computers that thought bouncing a ball around the screen was a good demo.

Seeing his demo inspired me to revisit my Benchmarking BASIC series and see if we can expand on this.

I begin with the excellent (and free) Xroar Emulator. For those that want to play along, there is now a web browser version you can try without installing anything, or you can try the original JS Mocha emulator. Both should be more than enough for this experiment.

First, I load up my BENCH.BAS framework so I can do some speed tests. It looks like this:

0 REM BENCH.BAS
5 DIM TE,TM,B,A,TT
10 FORA=0TO3:TIMER=0:TM=TIMER
20 FORB=0TO1000
70 NEXT
80 TE=TIMER-TM:PRINTA,TE
90 TT=TT+TE:NEXT:PRINTTT/A:END

The above sample code will run four tests (0 to 3) and each time it will do “something” 1001 times (0 to 1000) and report the results in CoCo TIMER values (where each number represents 1/60th of a second, give or take). The benchmark code would go between lines 20 and 70.

Let’s see how big of an object we want to display. Using Jim’s video as a reference (where he shows some of the BASIC source code), it looks like 8 characters wide by 9 characters tall:

Based on him using substrings going up to 6, it looks like he may have 7 frames of animation (0-6). Impressive. But let’s just start with displaying 8×9 characters in various ways to see how fast we can do it.

The fastest way in BASIC is to use a PRINT@ statement, so my first test is to see how long it takes to print these characters 1001 times. I will hard-code the location for each line starting with 0 (the top left of the screen). It looks like this:

30 PRINT@0,"12345678";:
   PRINT@32,"12345678";:
   PRINT@64,"12345678";:
   PRINT@96,"12345678";:
   PRINT@128,"12345678";:
   PRINT@160,"12345678";:
   PRINT@192,"12345678";:
   PRINT@224,"12345678";:
   PRINT@256,"12345678";

Running that in the benchmark program results in 3986.

Using decimal values is slow, so next I changed them to hex:

30 PRINT@&H0,"12345678";:
   PRINT@&H20,"12345678";:
   PRINT@&H40,"12345678";:
   PRINT@&H60,"12345678";:
   PRINT@&H80,"12345678";:
   PRINT@&HA0,"12345678";:
   PRINT@&HC0,"12345678";:
   PRINT@&HE0,"12345678";:
   PRINT@&H100,"12345678";

Parsing a hex value is much faster, so this results in 3018. That’s about 25% faster.

And, using variables is even faster, since no parsing is required. A quick test that sets variables I-Q to each value, then does a PRINT@I through PRINT@Q produces 2940. Not a huge gain, but every little bit helps. That’s probably the fastest one can print something like this in BASIC.

The problem with using multiple variables is you have to update each one every time the object moves. If you just use one variable, and do math for all the other lines, you are doing the same math for each line that would have been done for the variable.

At this point, we need to see which way of doing math is faster. Or, perhaps, maybe we can do it without using math. . .

To be continued…

Over in the CoCo Facebook group, Diego Barzio just posted a note about discovering some BASIC program line comments that had left out the REM keyword at the start. Because those lines were never the target of a GOTO, there was no error. This had the side effect of saving a byte (or two, since most do “REM ” at the start) for comment lines.

This made me think about what was going on. BASIC will allow you to type in anything, and will try to parse it (to tokenize the line) and produce an error (?SN ERROR, etc.) if there is a problem. But, when you are typing in a line, this BASIC doesn’t check anything until that line is actually ran in the program. (Other versions of BASIC will check when you hit enter. Didn’t the Apple 2 do that?)

REM

In an earlier article, I mentioned that “REM” tokenized into one byte, and the apostrophe (‘) turned into two bytes because it was “:REM(space)” allowing you do do something like this:

10 REM This is a comment.
20 'This is a comment

Since most folks type “REM(space)”, using the apostrophe without a space after it takes the same room. But if you include the space:

10 REM This is a comment
20 ' This is a comment

…that would make line 10 take one byte less (REM + space is two bytes, versus ‘ + space which is three bytes).

Now, if you do not include REM or apostrophe, you can save a byte or two for each comment. If you program has 50 lines of comments, that’s 50-100 bytes.

BASIC Keywords

However, this made me realize that leaving out the REM would cause it to try to tokenize the line, and turn any BASIC keyword into a token, saving even more memory. If your comment included words like PRINT, OR, ELSE, etc., you’d save even more room!

As you can see, because this comment uses the word PRINT (five characters), the version without the REM appears to save six bytes — it saves the apostrophe (two bytes, or would save “REM(space)” for two bytes) plus tokenizes the PRINT keyword down from five bytes to one (saving four more bytes).

Interesting BASIC interpreter abuse, isn’t it? As long as you never run this line, you might save memory by leaving our REM (depending on if you use any keywords). I could imaging comments saying “SHOW THE USER NAME” changed to “PRINT THE USR NAME” to tokenize two words (PRINT and USR).

You would still need REM at the start of the code for any initial comments, and during the code, but for subroutines you could do this:

10 REM THIS IS MY PROGRAM
20 A$="HELLO, WORLD!":GOSUB 1010
999 END
1000 PRINT THE MESSAGE
1010 PRINT A$:RETURN

The GOSUB jumps to 1010 and can find it, and since the program would END before reaching 1000, that would work.

With great power comes great responsibility. Use this wisely :) and thanks, Diego, for noticing this.

Until next time…
