Why is Microsoft BASIC INSTR like this?

UPDATE: I believe I have found the answer, and will share it in an upcoming post. Until then, keep those comments coming. I learn so much from all of you!


This topic has been discussed here years ago, but every time something reminds me about it, I get annoyed. While my annoyance is triggered by how it works in the CoCo’s Extended Color BASIC, past research showed the behavior was the same even in much later Microsoft Visual BASIC. But why?

INSTR is a command to return the index where a target string is found in a search string. From one of the Getting Started with Extended Color BASIC manuals, it is shown as this:

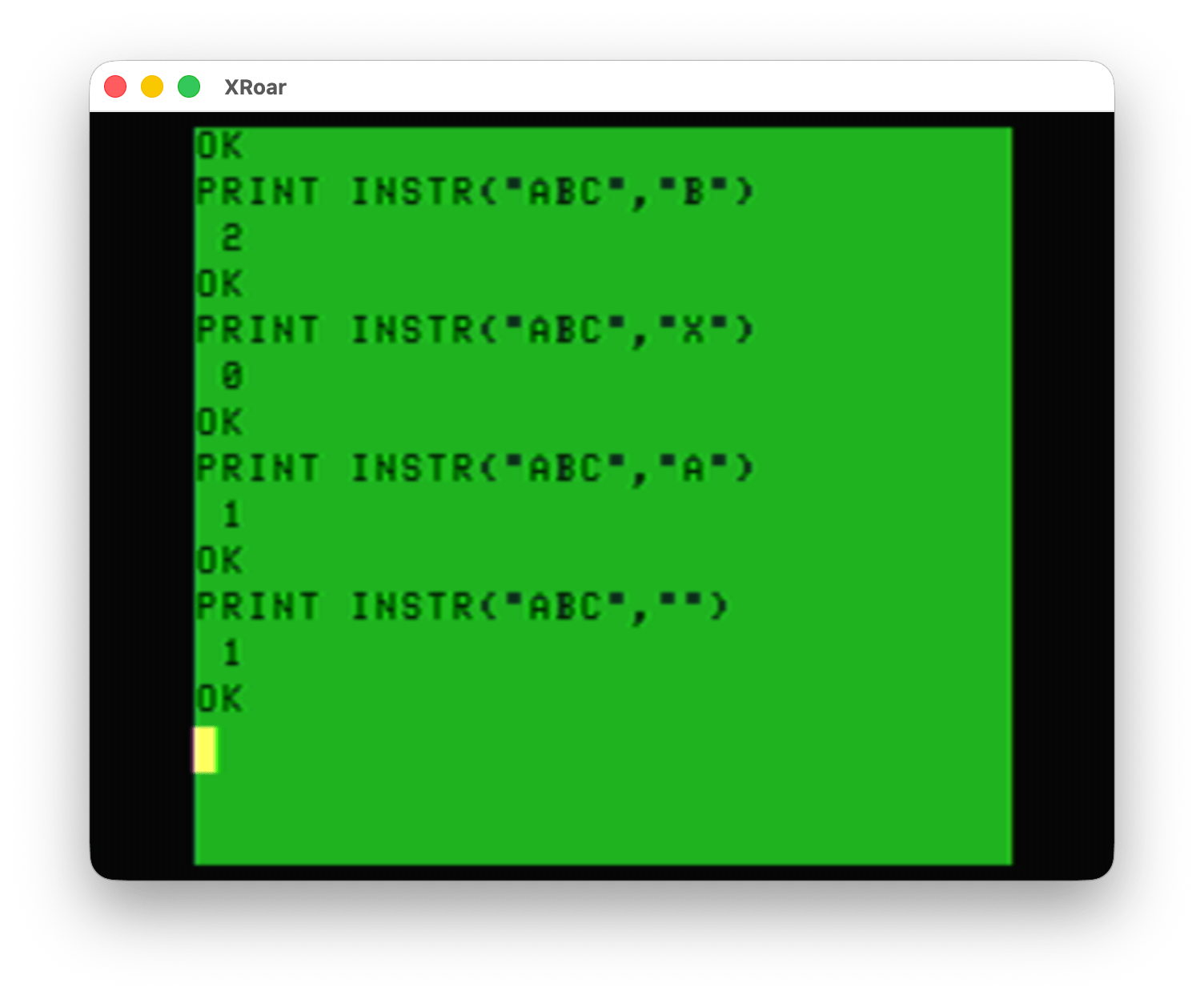

What the manual did not mention is that it can also return 1 when there is no match. See this example:

Looking for “B” in “ABC”? That’s at position 2. Good.

Looking for “X” in “ABC”? It is not there, so it returns 0. Good.

Looking for “A” in “ABC”? That’s at position 1. Good.

Looking for “” in “ABC”? Apparently “” is found at position 1. Don’t tell that to the “A” there.

Callbacks

I ran into this years ago when I was experimenting with various ways to handle key presses. You could have code block until a key was pressed, and then pass the key to INST and then use ON GOTO/GOSUB to get to the routine. Like this:

0 'INSTR.BAS
10 PRINT "A)BORT, R)ETRY, C)ONTINUE:";
20 A$=INKEY$:IF A$="" THEN 20
30 LN=INSTR("ARC",A$)
40 IF LN>0 THEN ON LN GOSUB 1000,2000,3000
50 GOTO 10

1000 ' ABORT
1010 PRINT"ABORT":STOP

2000 ' RETRY
2010 PRINT "RETRY":RETURN

3000 ' CONTINUE
3010 PRINT "CONT":RETURN

This was a great technique when dealing with a long list of menu options.

I had tried to optimize this by eliminating the A$ and embedding it inside the INSTR (someone in the comments may have suggested this to me; not sure if I am clever enough to have thought that up):

ON INSTR("ARC",INKEY$) GOSUB 1000,2000,3000

…but if I put that in my code replacing lines 20-40, running it immediately shows me “ABORT” as if INSTR returned 1.

Because INSTR returned 1.

The workaround suggested to me (again, from smart folks in the comments) was maybe to add a bogus value as the first search string character, and have that routine do nothing.

ON INSTR("*ARC",INKEY$) GOSUB 999,1000,2000,3000

However, for my example where I show the prompt again after it returns, it sticks in a loop printing the prompt over and over again. The code thinks the first option is being selected, then calls that routine (the empty routine that is just a RETURN in line 60) and then prints the prompt again.

0 'INSTR2.BAS
10 PRINT "A)BORT, R)ETRY, C)ONTINUE:";
20 ON INSTR("*ARC",INKEY$) GOSUB 60,1000,2000,3000
50 GOTO 10
60 RETURN

1000 ' ABORT
1010 PRINT"ABORT":STOP

2000 ' RETRY
2010 PRINT "RETRY":RETURN

3000 ' CONTINUE
3010 PRINT "CONT":RETURN

SO … it works, but the logic needs to be updated.

One quick solution is to not use RETURN and let each function decide where to go back to. When you GOSUB, BASIC has to scan forward (possibly starting at the top of the program if the line number is before the current line being parsed) to find the target. RETURN lets it “pop” back to right after the GOSUB, so that part is faster.

Also, GOSUB routines can be called from different places in the main code and they will return back to where they were called.

If these routines are never called from anywhere but the menu code, and the extra speed to GOTO back is not a problem, this this change makes it work. And, as a bonus, the fake first GOTO line can just be back to the ON INSTR again since it doesn’t need to do anything:

0 'INSTR3.BAS
10 PRINT "A)BORT, R)ETRY, C)ONTINUE:";
20 ON INSTR("*ARC",INKEY$) GOTO 20,1000,2000,3000

1000 ' ABORT
1010 PRINT"ABORT":STOP

2000 ' RETRY
2010 PRINT "RETRY":GOTO 10

3000 ' CONTINUE
3010 PRINT "CONT":GOTO 10

I am sure there are many other ways to solve this problem.

But why do we have to?

Why does INSTR behave like this? What is the benefit of not returning 0?

Hmmm, A.I. did not exist when I was first exploring this. Maybe I’ll ask one of the ‘bots and see what it knows.

Until next time…

9 thoughts on “Why is Microsoft BASIC INSTR like this?

  1. Luis Fernández, LuisCOCO

    This is logical, if you search for three letters it searches for that piece but when searching for nothing it starts in the first position and searches for zero characters that brings a null string and compares it with the null to search for and returns true in POS 1

    Reply
      1. Luis Fernández, LuisCOCO

        No Edit posible
        This is logical, if you search for three letters it searches for that piece but when searching for nothing it starts in the first position and searches for zero characters in the destination since it is useless to search for more letters if you search for fewer letters, that brings a null string as the first data found and compares it with the null to search and gives true

        Reply
  2. William Astle

    Put another way, the empty string is self-evidently a valid substring of every string at every position within that string so it will naturally match the position where the search starts. This is also mathematically correct when you look at set theory. The null set is a subset of all sets.

    Reply
    1. Allen Huffman Post author

      It has been suggested that the user on INSTR needs two checks, which thinking like C would be like a NULL check before something using a pointer. Not exactly how I’m used to writing BASIC ;)

      I am now curious if non-Microsoft BASICs implemented something like INSTR, and what they did. Did MS make it up, or was this part of Dartmouth BASIC or something.

      Reply
  3. MiaM

    Re the tangent on GOSUB/RETURN:
    I’ve never looked in to POKEing a different return address, or for that sake just popping a return address from the gosub-return stack.
    I wonder if there ever were any BASIC where you could do the mother of all spaghetti code by adding a line number to RETURN, making it act as a GOTO but also pops a return address from the GOSUB/RETURN stack without using it?
    That could be an interesting modification to make to BASIC :)

    Reply
    1. Allen Huffman Post author

      Oh! I know just who to ask about doing that to his DISK ROM project!

      …I have no idea where the return address is stored. I think that would be a fun experiment. Being able to POP the return would be useful:

      100 GOSUB 1000

      1000 REM DO STUFF
      1010 REM BUT IF WE DECIDE
      1020 RETURN POP:GOTO 500

      I could see it as a way to decide to escape a subroutine.

      Reply
